Understanding PTAC Units: The Ultimate Guide

What Is a PTAC Unit?

A PTAC (Packaged Terminal Air Conditioner) is a self-contained heating and cooling system commonly installed through a wall. Unlike central HVAC systems that serve an entire building, PTAC units are designed to control the climate of individual spaces. This makes them ideal for:

• Hotels and motels

• Assisted living facilities

• Hospitals

• Dormitories

• Multi-family housing

• Office suites




Each unit operates independently, allowing users to set their preferred temperature without affecting other rooms. This feature is a major advantage in shared environments.

How a PTAC System Works

A PTAC system combines all essential HVAC components — compressor, condenser, evaporator, fan, and control system — into a single compact chassis. It works similarly to a window air conditioner but is built for through-the-wall installation and more permanent use. Here’s a quick overview of the process:

1. Cooling Mode: The compressor circulates refrigerant that absorbs heat from the indoor air and releases it outdoors.

2. Heating Mode: Most PTACs use either electric resistance heating or a heat pump to provide warmth during colder months.

3. Air Circulation: A fan continuously moves air through the coils and back into the room for consistent comfort.




Some modern models also include fresh air ventilation, which improves indoor air quality and overall comfort.

Key Benefits of PTAC Units

PTAC units come with several advantages that make them a preferred choice for many settings:

• ✅ Individual Temperature Control – Guests or tenants can set their preferred climate.

• ✅ Energy Efficiency – Heating or cooling only occupied rooms reduces energy waste.

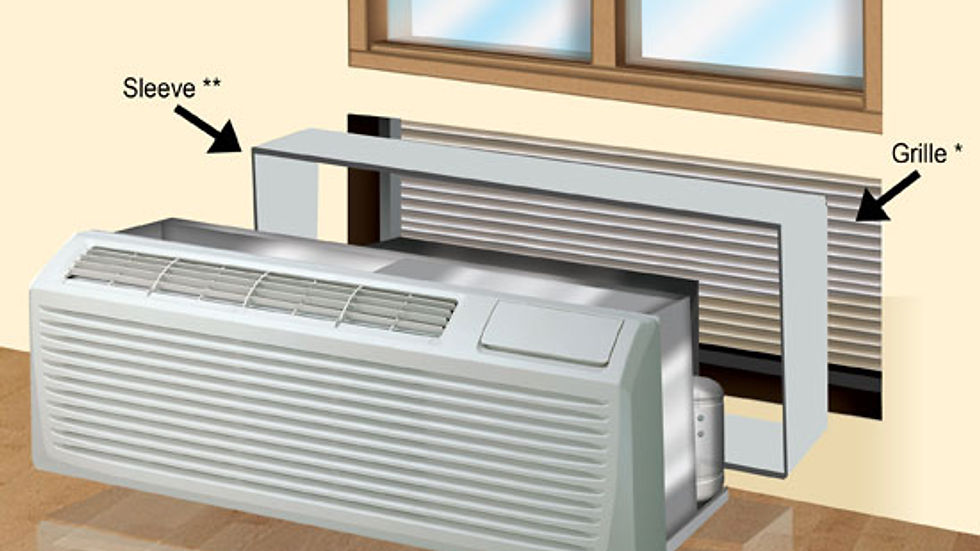

• ✅ Ease of Installation – No ductwork is required; units simply slide into a wall sleeve.

• ✅ Simple Maintenance – The front-access design allows for quick cleaning or part replacement.

• ✅ Long Lifespan – With proper care, PTAC units can last 10–15 years.




Maintenance Tips for PTAC Units

Keeping your PTAC running smoothly doesn’t take much — just regular attention. Here are some essential maintenance tips:

• Clean or replace filters every 30–60 days.

• Vacuum coils to remove dust and debris buildup.

• Inspect drain pans and lines for clogs.

• Check thermostats and controls regularly.

• Schedule professional maintenance annually for maximum performance.




Proper upkeep not only extends the unit’s life but also keeps energy costs in check.

Choosing the Right PTAC System

When selecting a PTAC unit, consider the following factors:

• Room size (BTU rating) – Match the unit’s capacity to the square footage of the space.

• Power source – Most units operate on 208/230V or 265V power.

• Heating type – Decide between electric heat or a heat pump option.

• Noise level – Look for quiet operation, especially for hospitality settings.

• Energy Efficiency Ratio (EER) – A higher EER means better performance per watt.




Leading brands like Amana, GE, Friedrich, and LG offer reliable PTAC systems with smart features, including programmable thermostats and occupancy sensors.

The Importance of Energy Efficiency

Energy efficiency is crucial when selecting a PTAC unit. Not only does it help reduce your carbon footprint, but it also lowers your energy bills. Choosing a unit with a high EER rating ensures that you are getting the most out of your investment.

Final Thoughts

A PTAC unit system is one of the most practical and efficient solutions for climate control in individual spaces. Whether you’re managing a hotel, upgrading a multi-family building, or simply seeking an independent heating and cooling system, PTACs offer flexibility, durability, and user comfort — all in a single package.

With the right model and regular maintenance, your PTAC system can deliver years of reliable performance while keeping energy bills low and occupants comfortable year-round.

For more information on selecting the best PTAC unit for your needs, check out this helpful guide.
